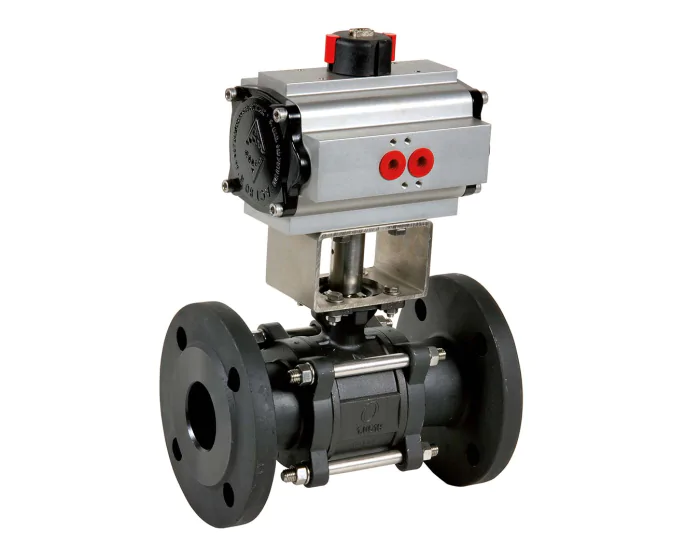

The 710XS series carbon steel ball valve has an A216WCB body and a CF8M ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN100.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 316 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | PTFE - Graphite |
| PS (bar) | 40 |
| Connections | Flanged PN40 |
| Seats | PTFE-Stainless steel |
| Ball material | Stainless steel 316 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
| Range | Industry |
| Fire safe | Yes |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Double acting | 271312015100X | S1002267 |
€275.80
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN15 - 1/2'' Spring return | 271312016100X | S1002268 |
€297.03
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Double acting | 271313015100X | S1002269 |
€301.26
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN20 - 3/4'' Spring return | 271313016101X | S1002270 |
€328.86
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Double acting | 271314015100X | S1002271 |
€301.26
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN25 - 1'' Spring return | 271314016101X | S1002272 |
€333.09
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Double acting | 271315015100X | S1002273 |
€303.39
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN32 - 1''1/4 Spring return | 271315016102X | S1002274 |
€335.21
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Double acting | 271316015101X | S1002275 |
€392.51
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN40 - 1''1/2 Spring return | 271316016103X | S1002276 |
€636.49
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Double acting | 271317015102X | S1002277 |
€509.19
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN50 - 2'' Spring return | 271317016104X | S1002278 |
€647.09
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN65 - 2''1/2 Double acting | 271318015102X | S1002279 |
€700.13
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN65 - 2''1/2 Spring return | 271318016104X | S1002280 |
€869.87
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN80 - 3'' Double acting | 271319015103X | S1002281 |
€1,028.99
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN80 - 3'' Spring return | 271319016105X | S1002282 |
€1,262.36
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' Double acting | 271320015104X | S1002283 |
€1,272.96
(excl. btw)
|
add to cart |
| Flanged PN40 Carbon steel A216 WCB (1.0619) Full 3-piece body DN100 - 4'' Spring return | 271320016106X | S1002284 |
€1,591.20
(excl. btw)
|
add to cart |
